• Pricing Information

    Excluding VAT

    Price shown is the RRP and may change without notice. For up to date pricing and trade discount, please enquire.
  • Model

    220R Loader on a 2032R, 2036R, 2038R Compact Tractor

  • Health and Safety

    HME ensures that all applicable products are compliant with British/European standards and come with a CE/UKCA mark.

  • Warranty

    HME offer a 12 (twelve) month warranty on all new products effective from the date of despatch from HME which covers against faulty materials and workmanship. The warranty is exclusively to the supplying agent. The warranty is on condition that the fault is reported immediately to the agent, and that the faulty component/ part is made available to HME via the agent. Replaced parts carry a 90-day warranty. HME’s warranty does not cover faults caused by inadequate maintenance, improper use, modification or incorrect installation. HME warranty does not cover wear and tear. Within the warranty period, testing or fault diagnosis at the request of the agent will be carried out without charge to the agent if the defects are established to be manufactures fault, otherwise the purchaser is liable for all costs. Warranty does not cover malicious or accidental damage.

Request a Quote

JD 3rd Service Kit with Joystick Control

WP001942

1190.00

The HME 3rd Service Kit has been developed specifically to fit John Deere 2032R, 2036R, 2038R fitted with 220R Loader and is currently only approved for use with these models.

Designed to allow for the use of loader attachments with additional moving parts, a 4 in 1 bucket for example.

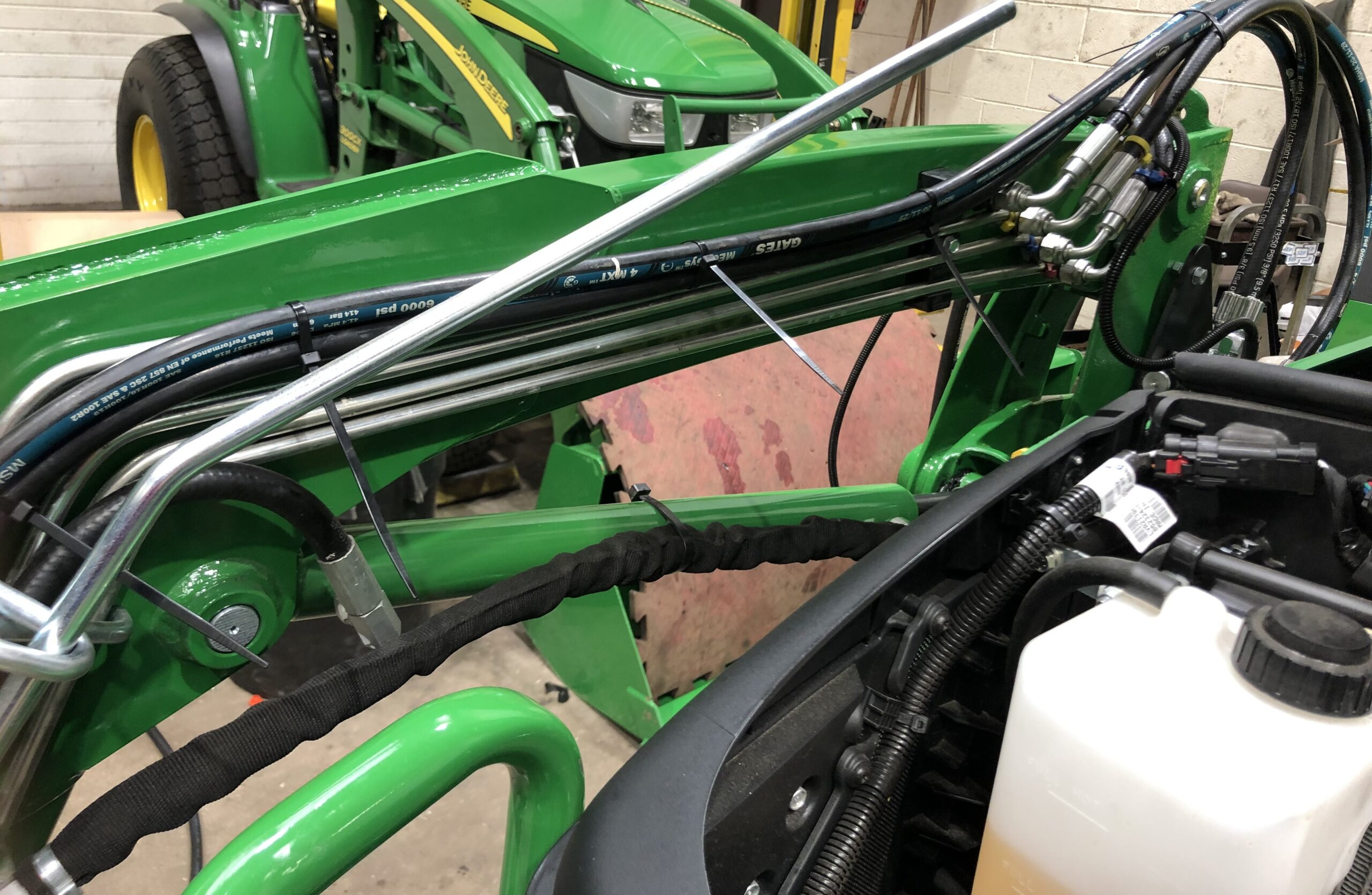

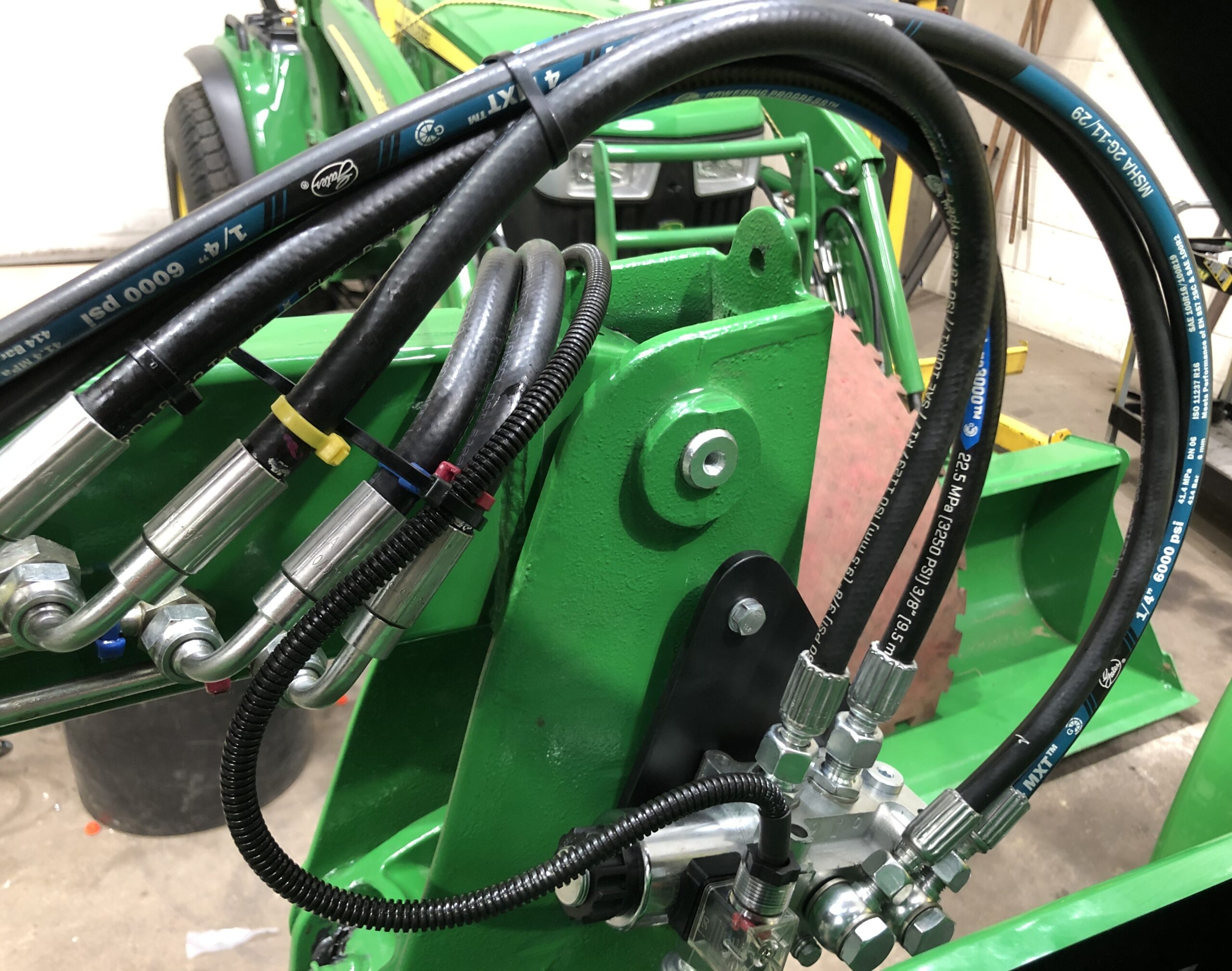

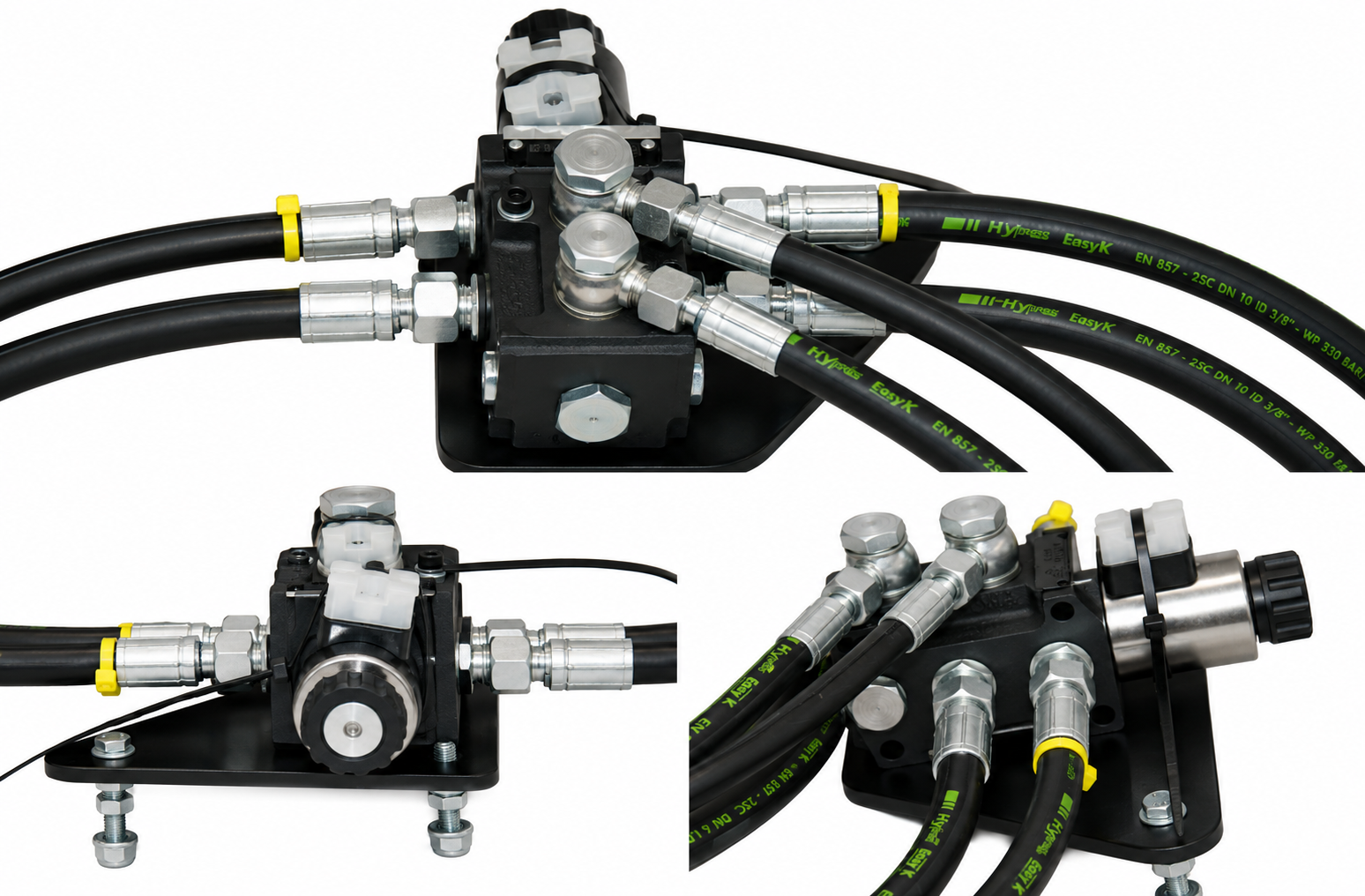

This is achieved by using the switch on the new joystick to divert hydraulic fluid to new lines. The kit includes all hydraulic lines, a new joystick with in built diverter switch, power supply wire and ground wire. The valve mounts onto your front end loader for easy maintenance and removal.

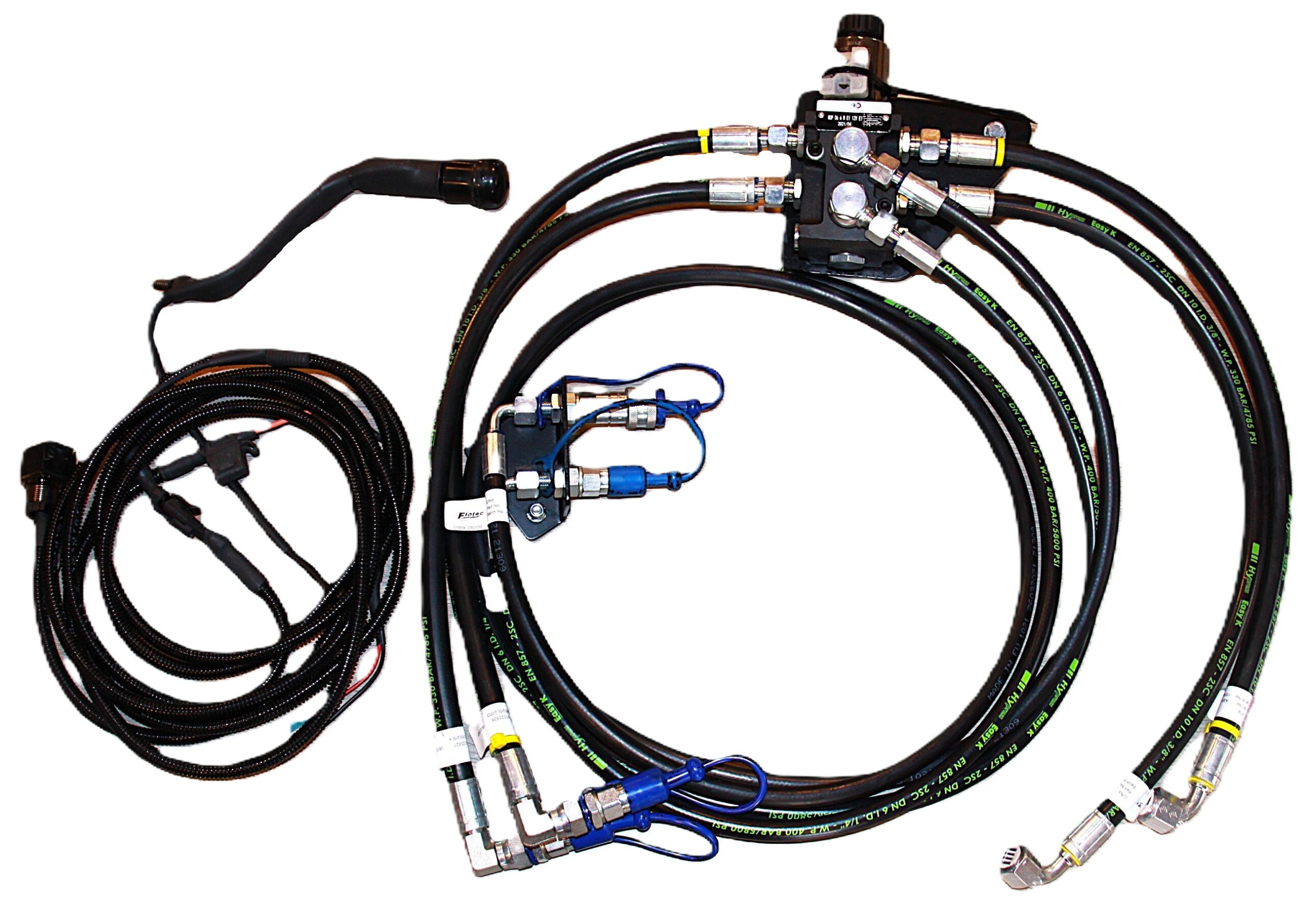

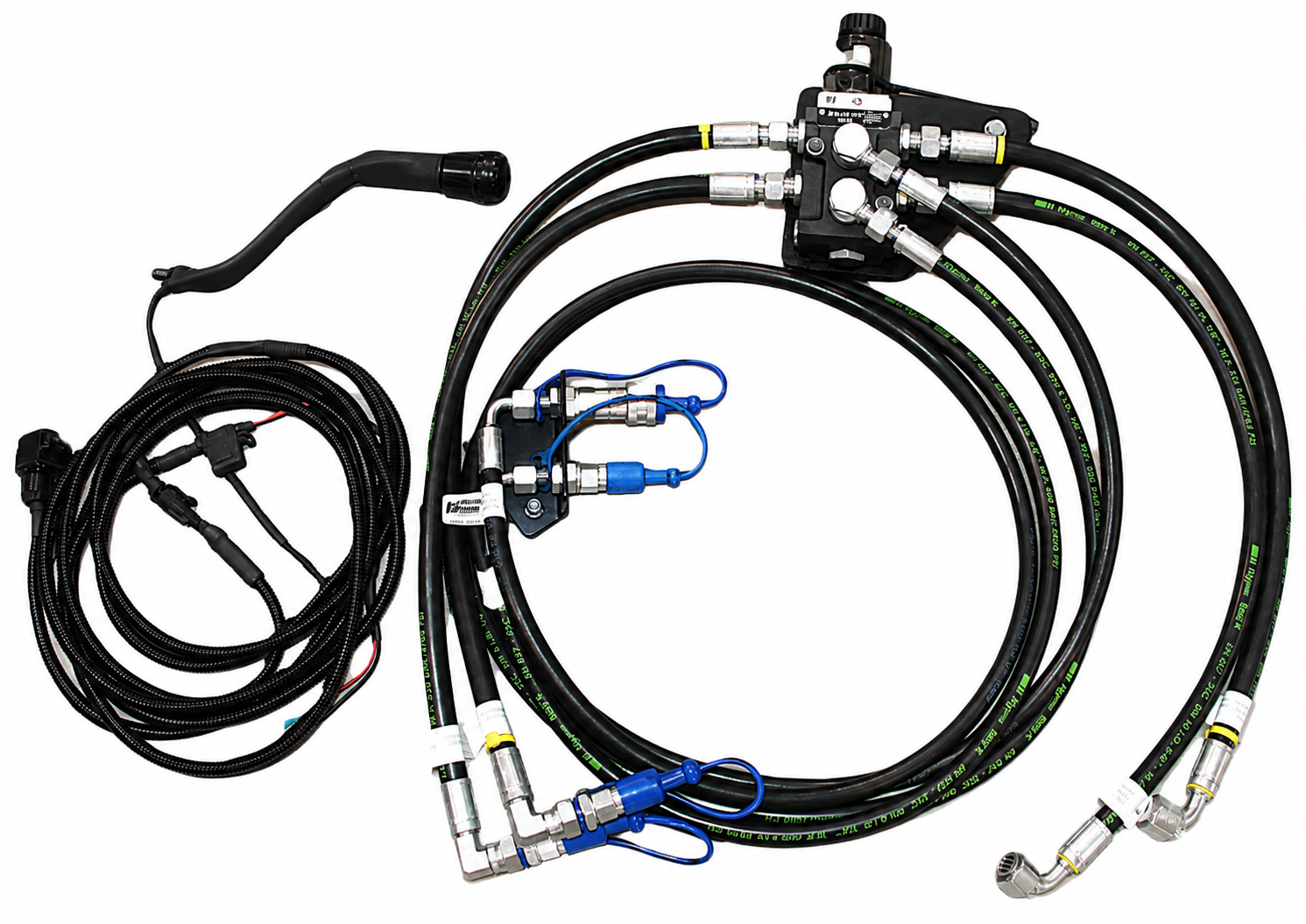

KIT CONTENTS

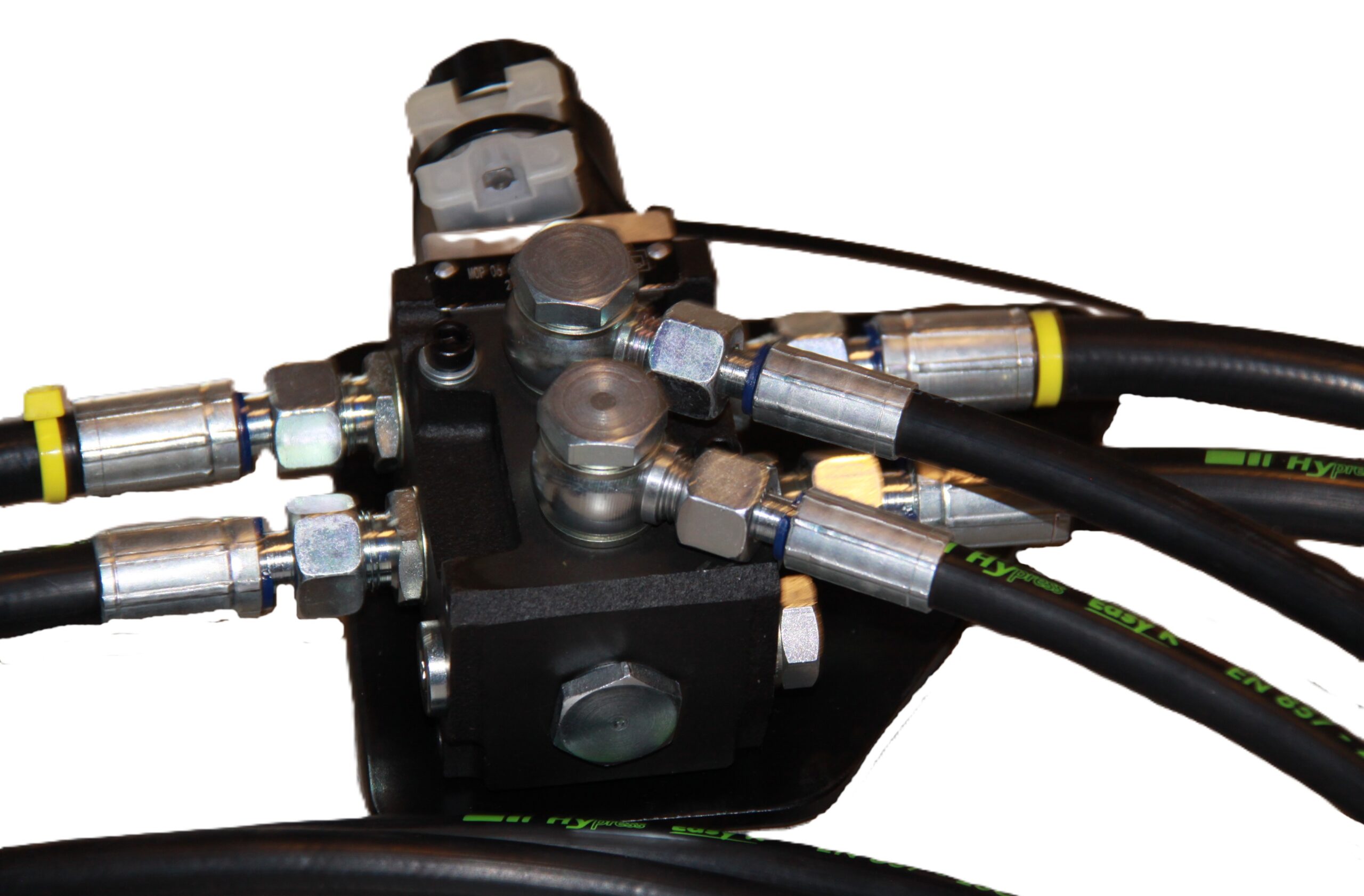

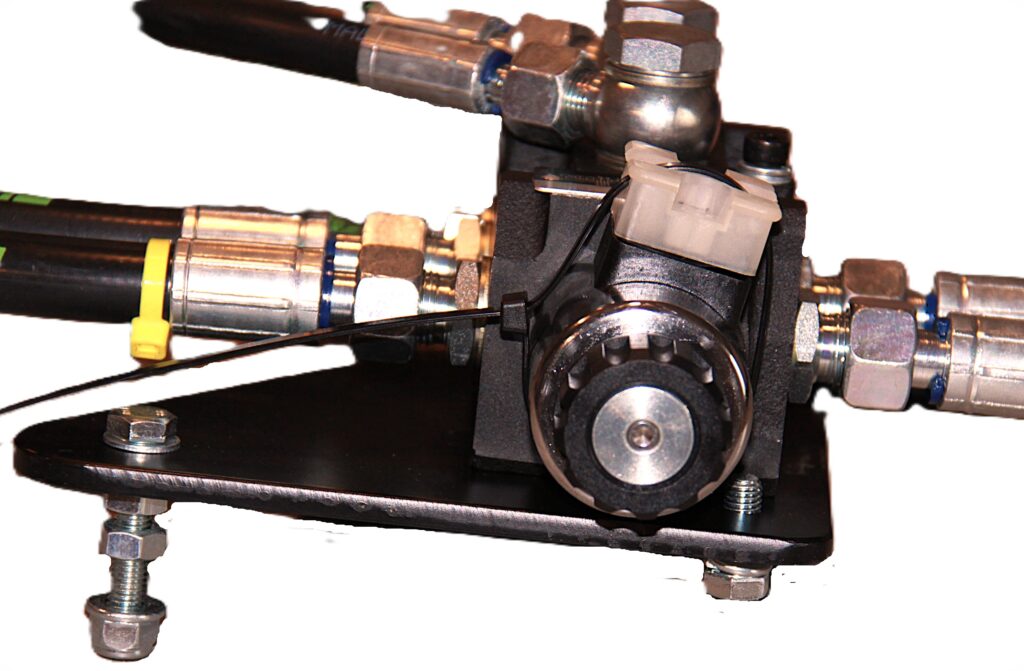

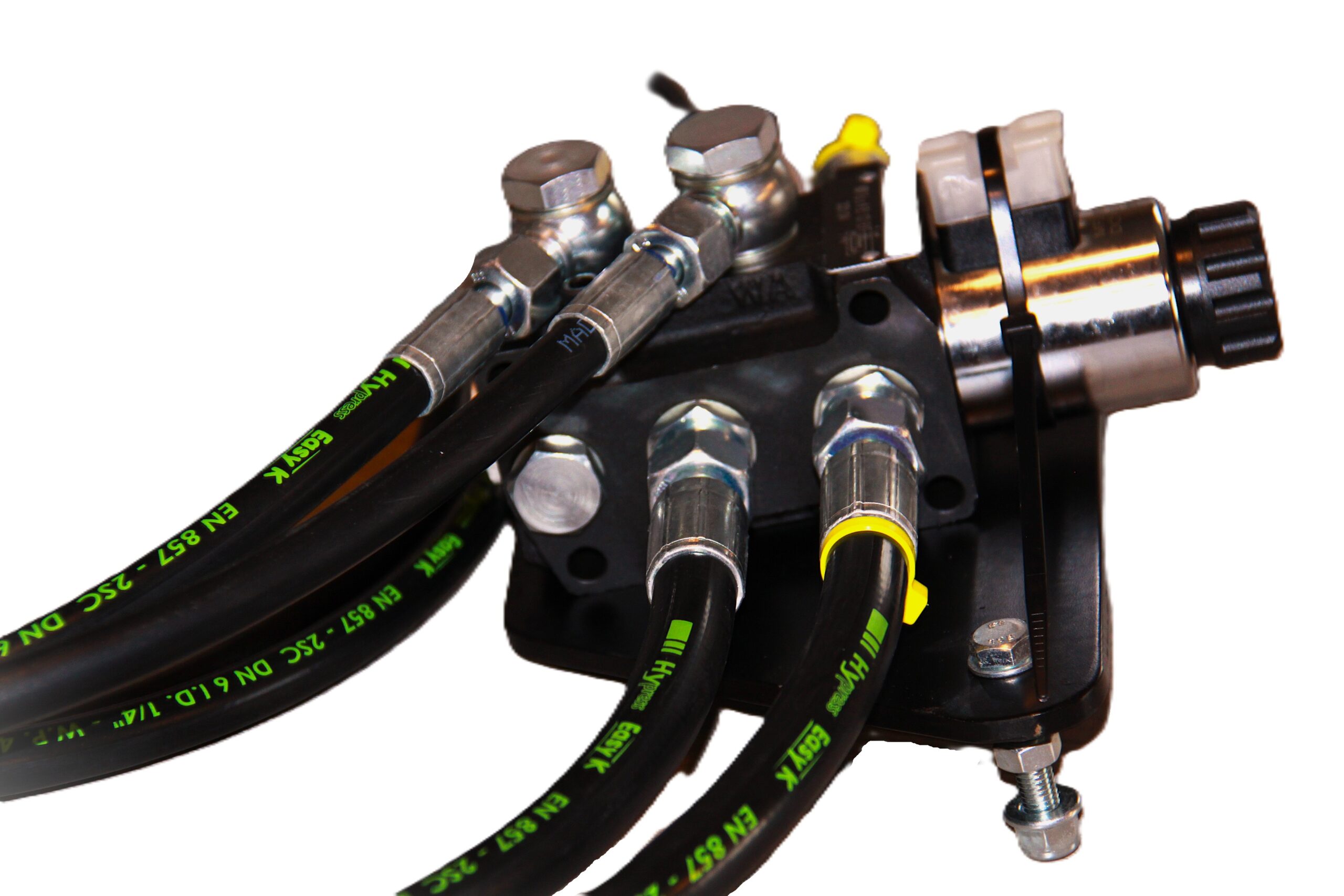

  1. Diverter valve block and mounting bracket
  2. Hydraulic hoses to spool block (Power unit)
  3. Hydraulic hoses to couplings on loader
  4. Hydraulic hoses on loader block

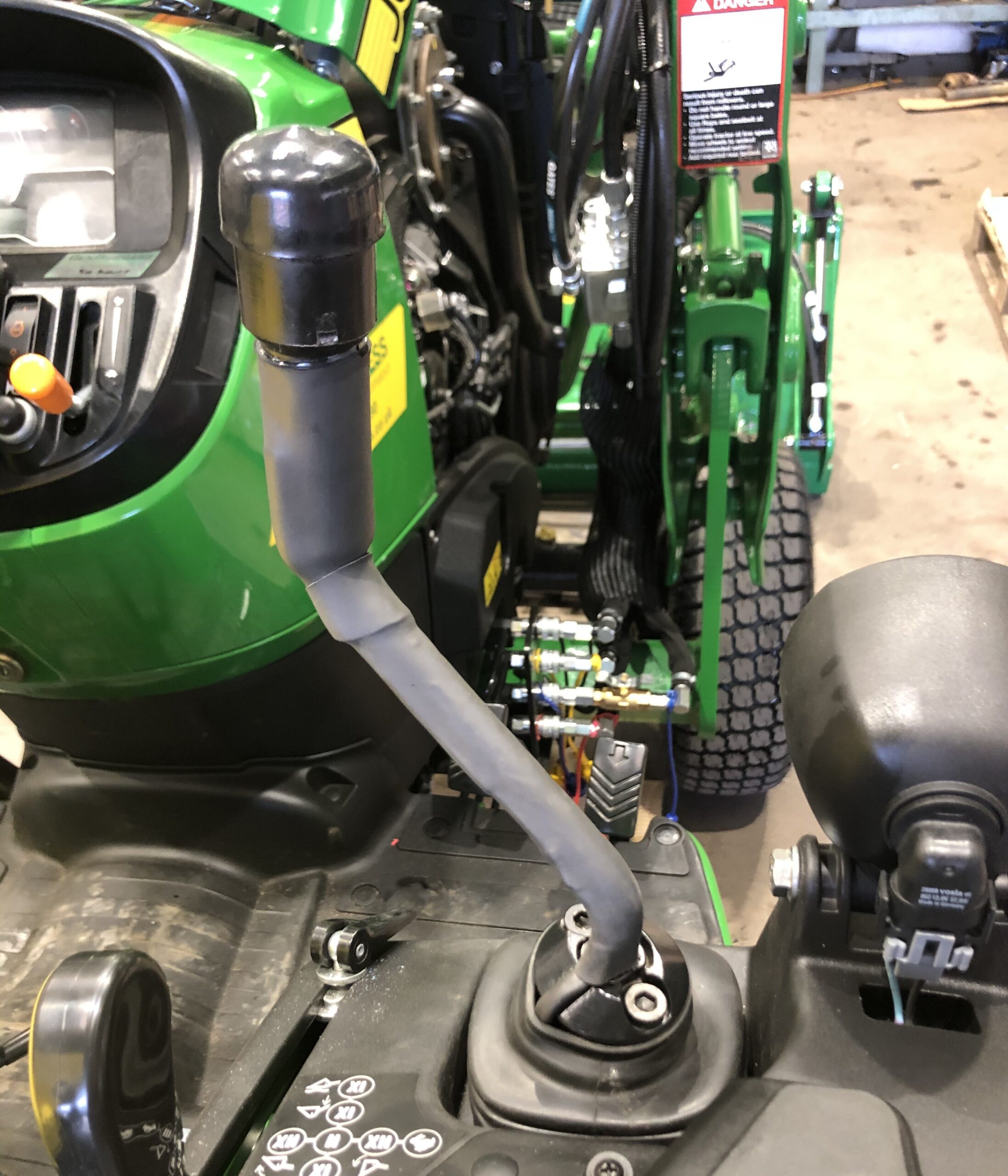

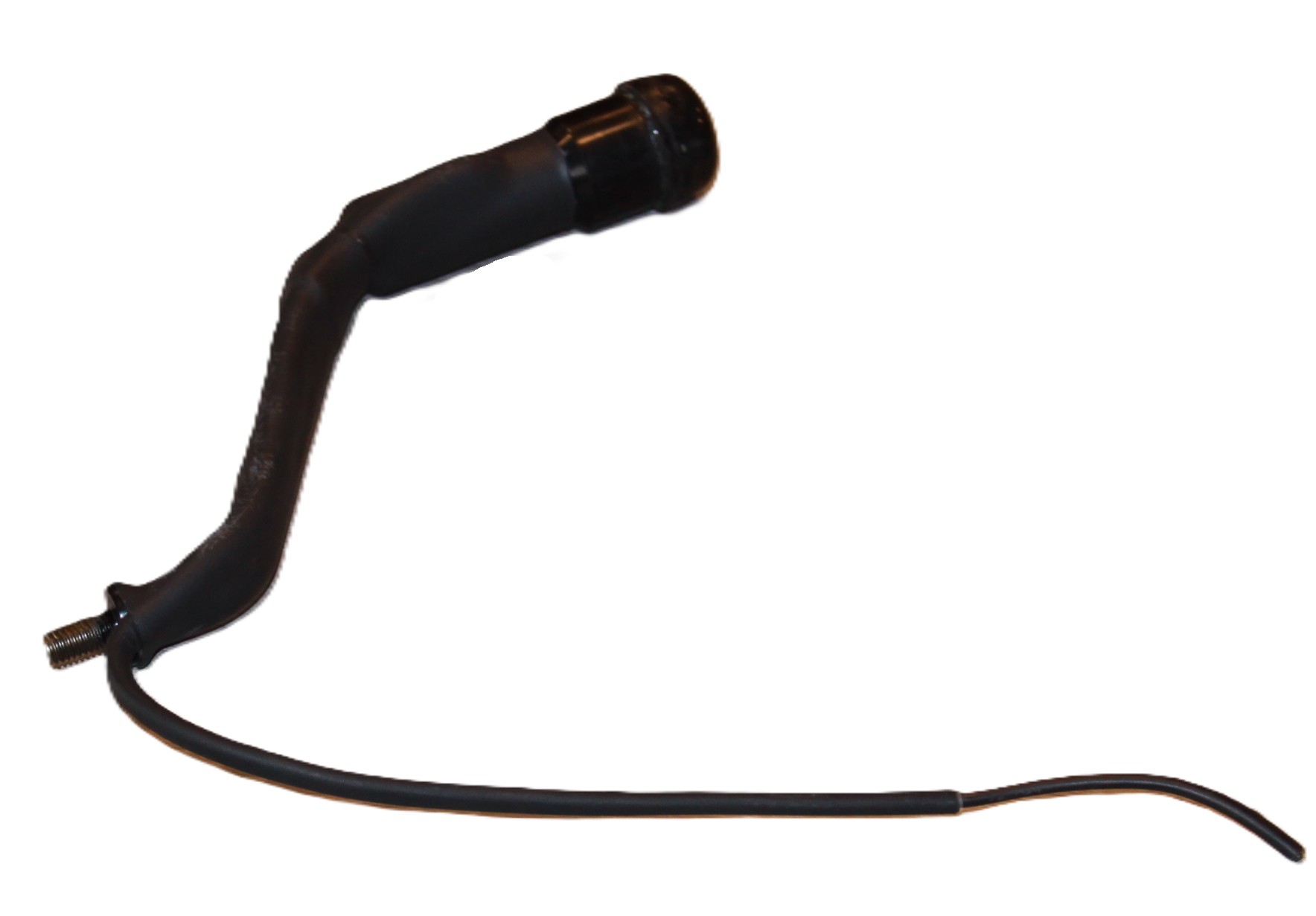

  5. Joystick Control
  6. Joystick Connection
  7. Hirschmann Connector
  8. Connector Plug
  9. Ground Wire
  10. Alternator Power Supply Wire

Spare Parts

Do you want spare parts for this product?

Specification

3rd service function

Not Required

Tractor manufacturer

John Deere

Downloads

JD 2036R 3rd Hydr. Service Kit with Joystick Control

Download now
