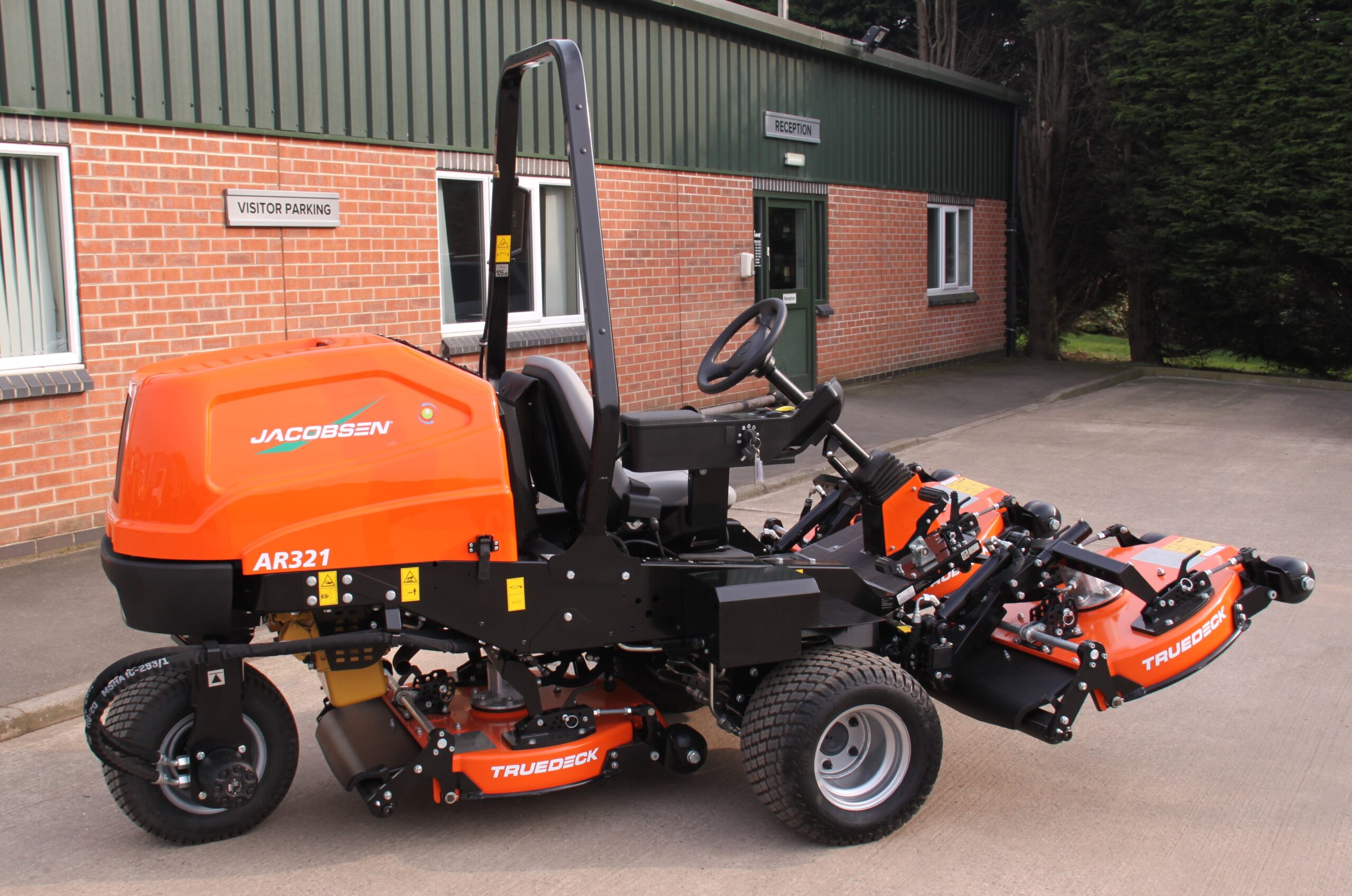

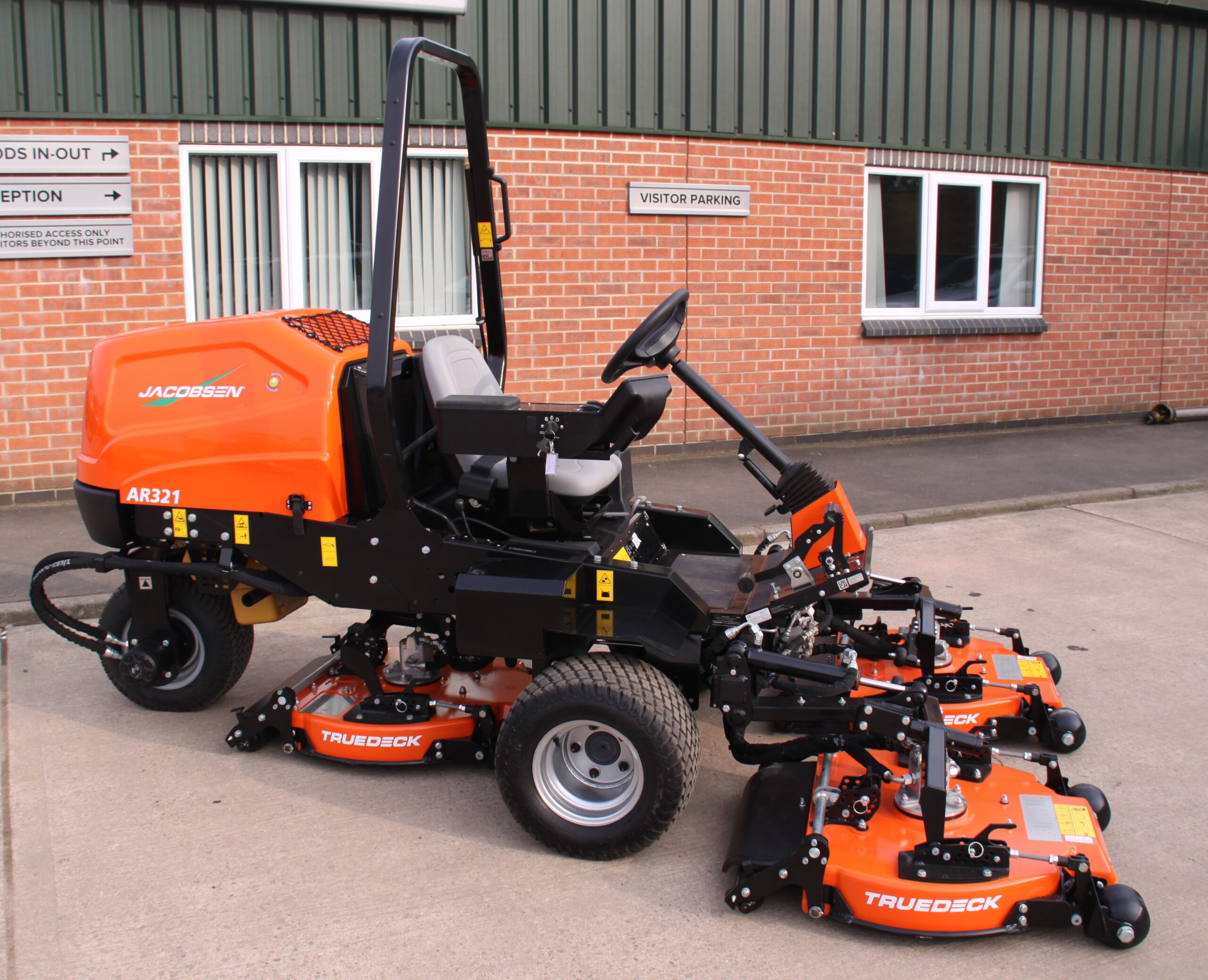

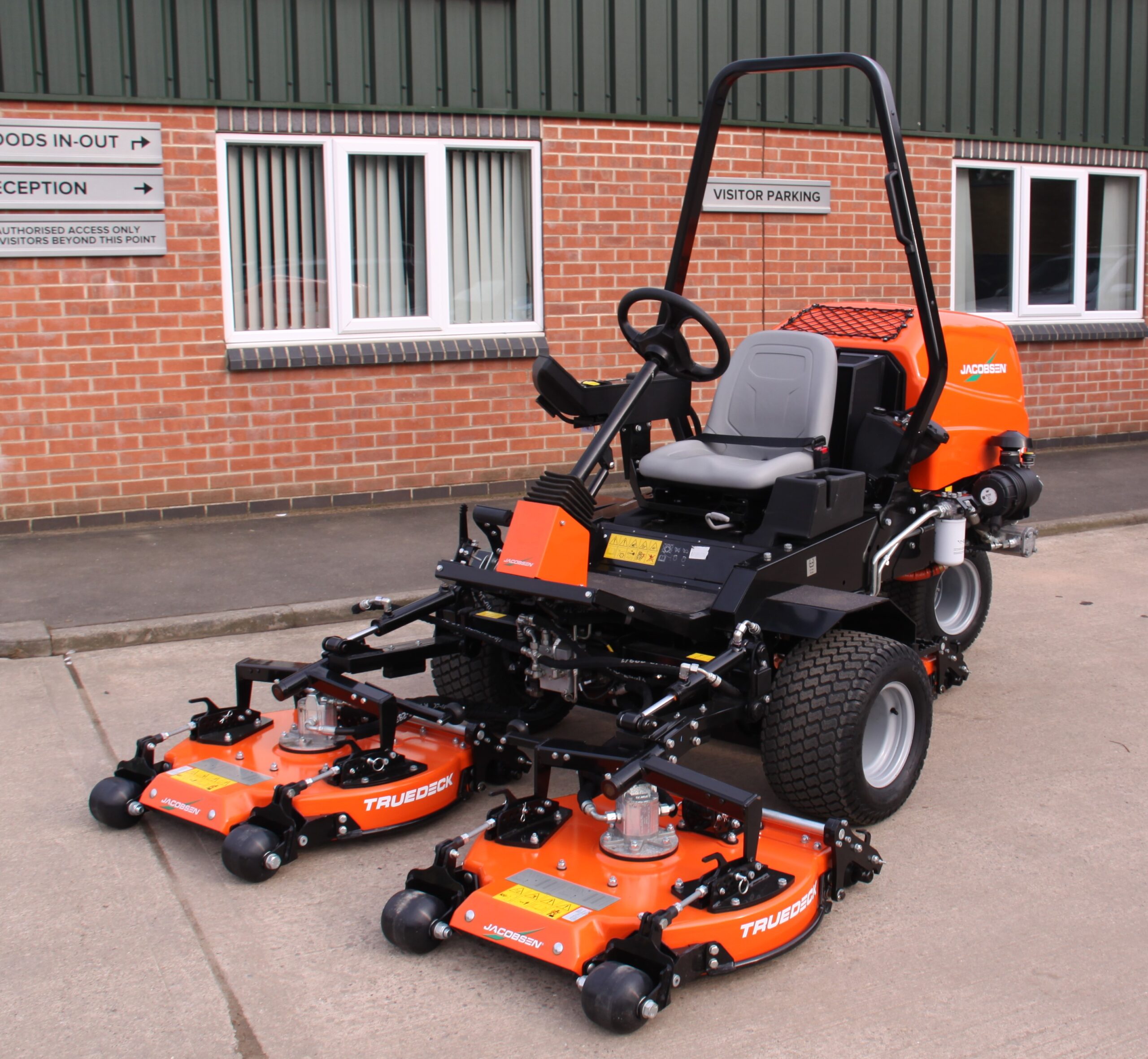

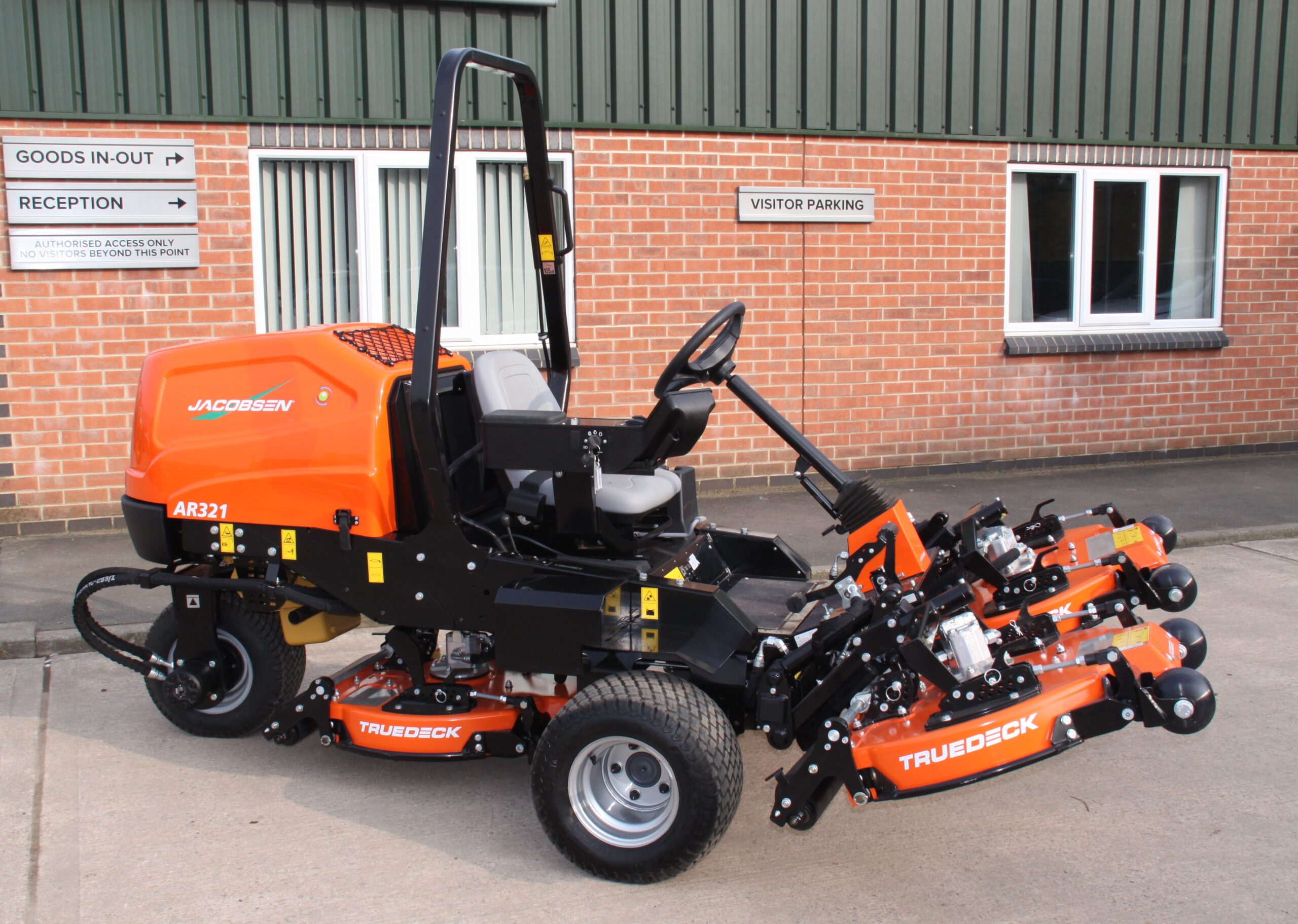

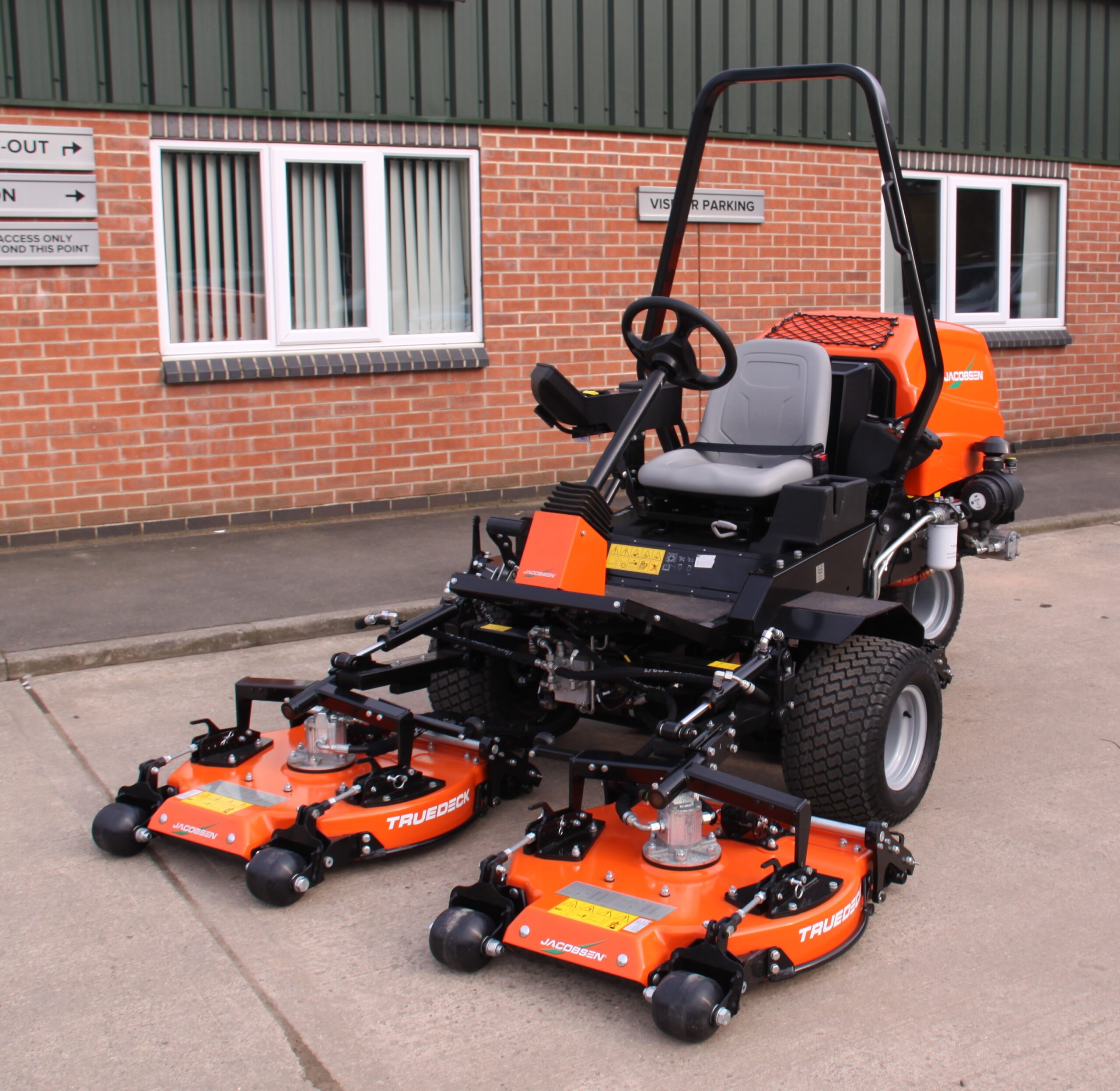

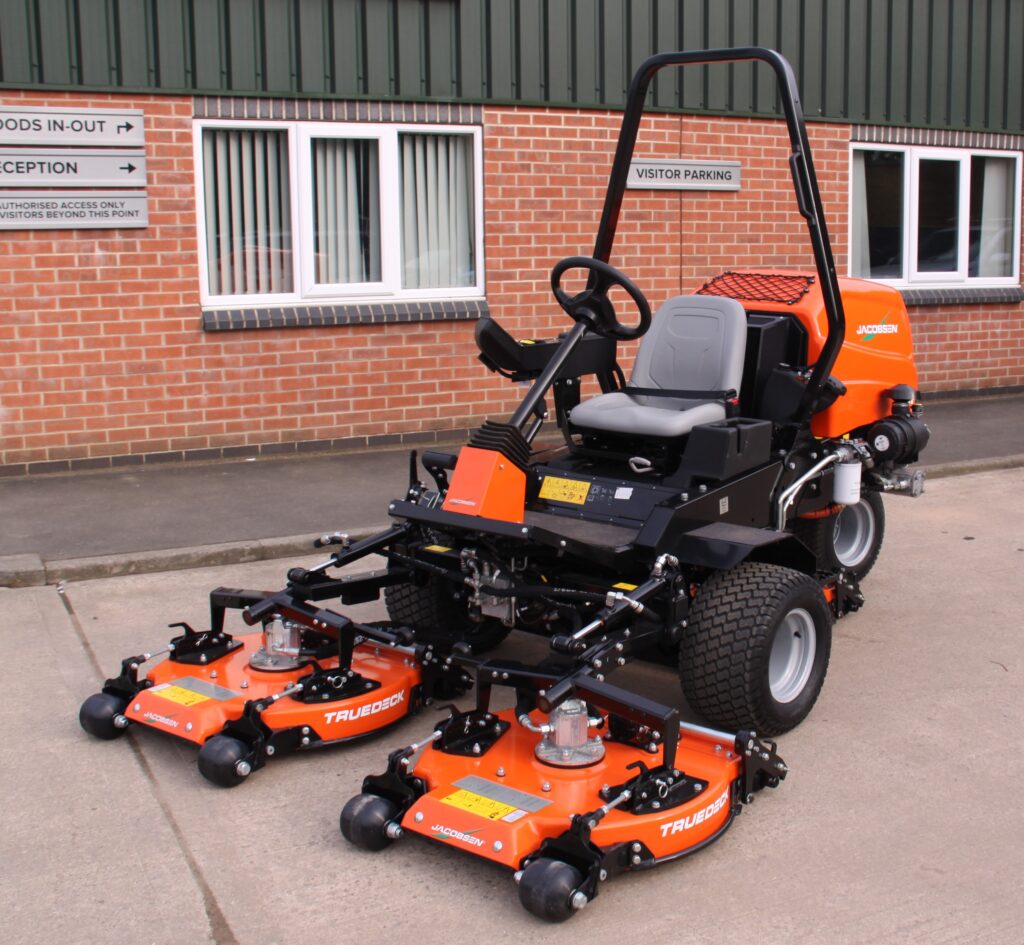

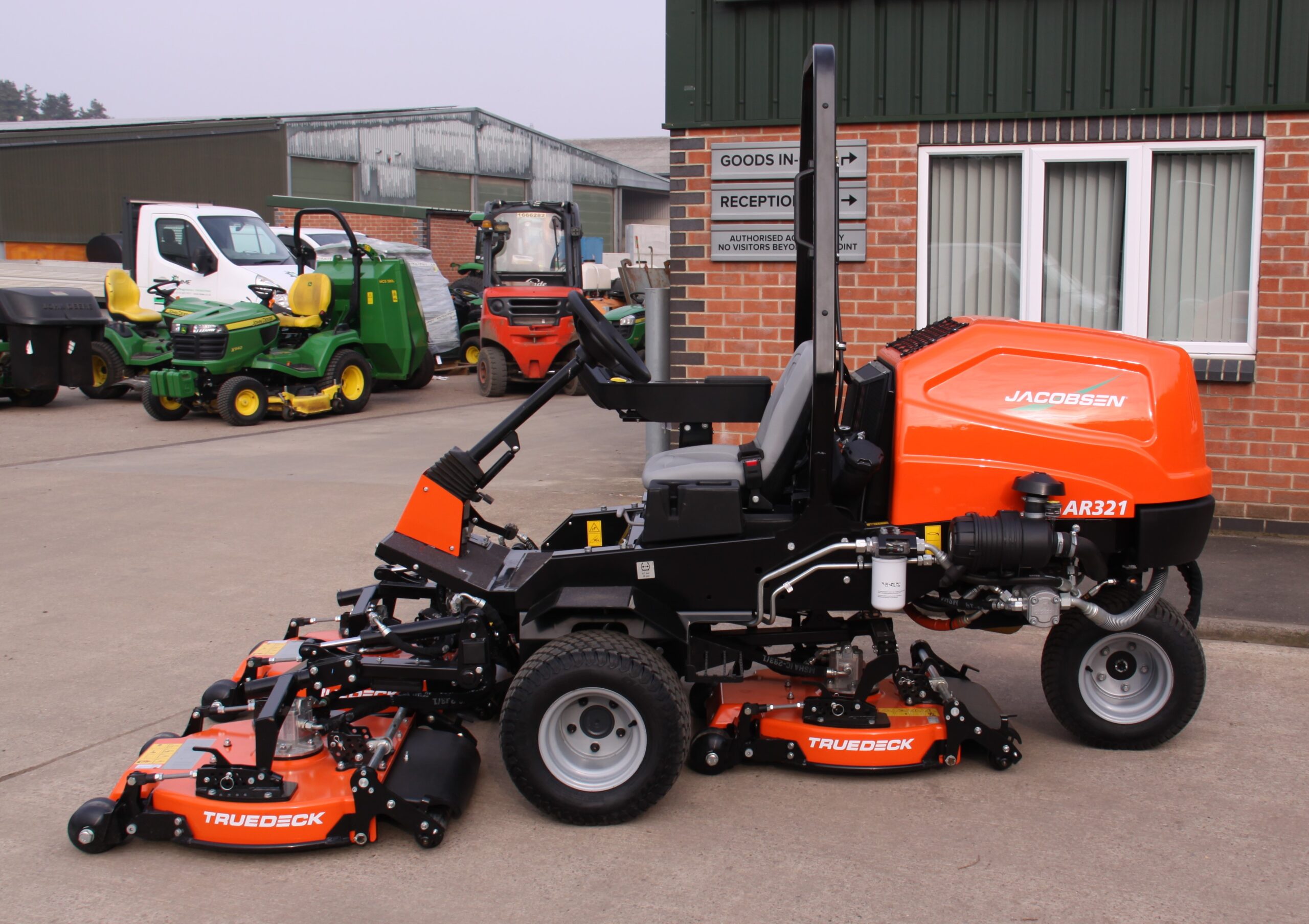

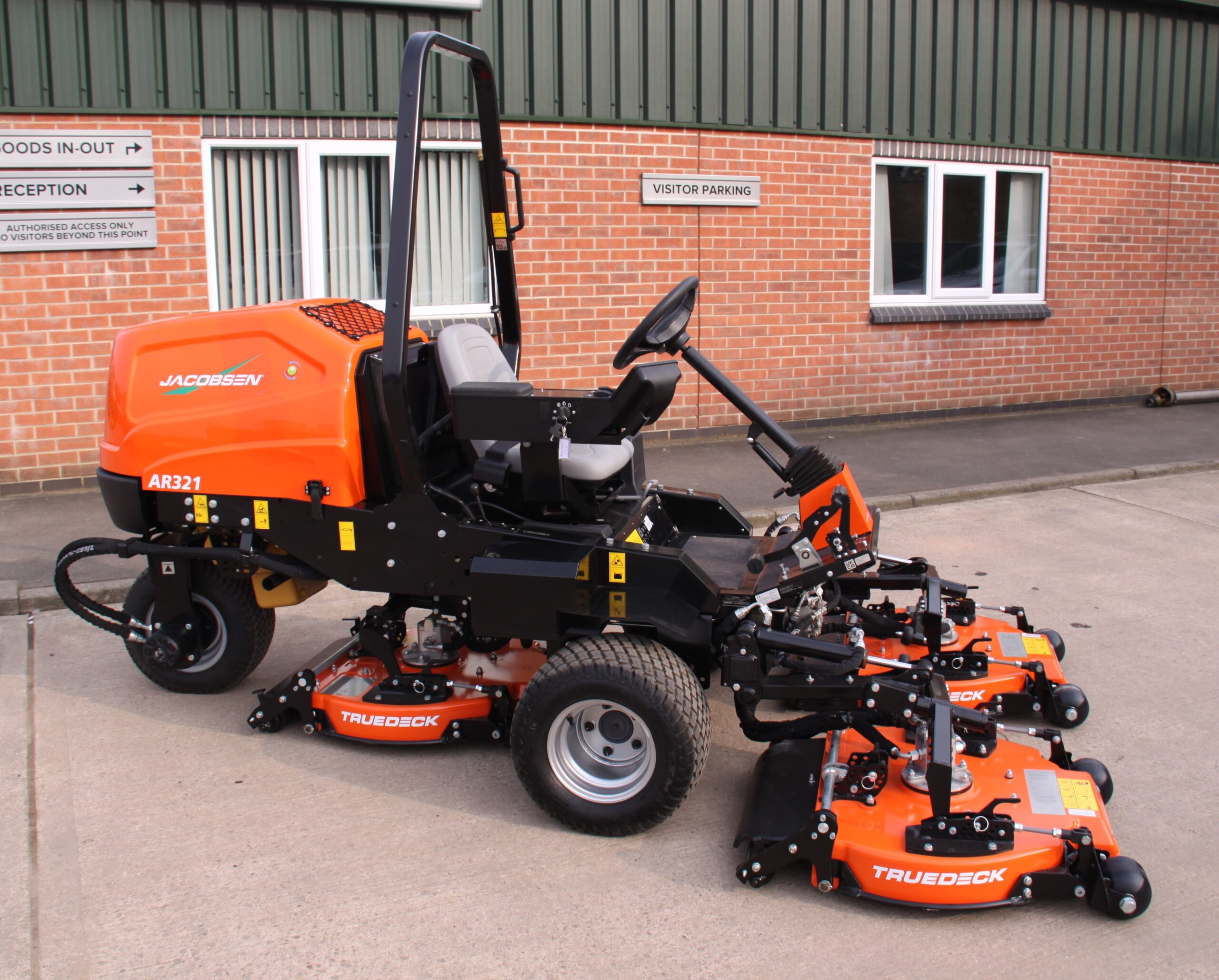

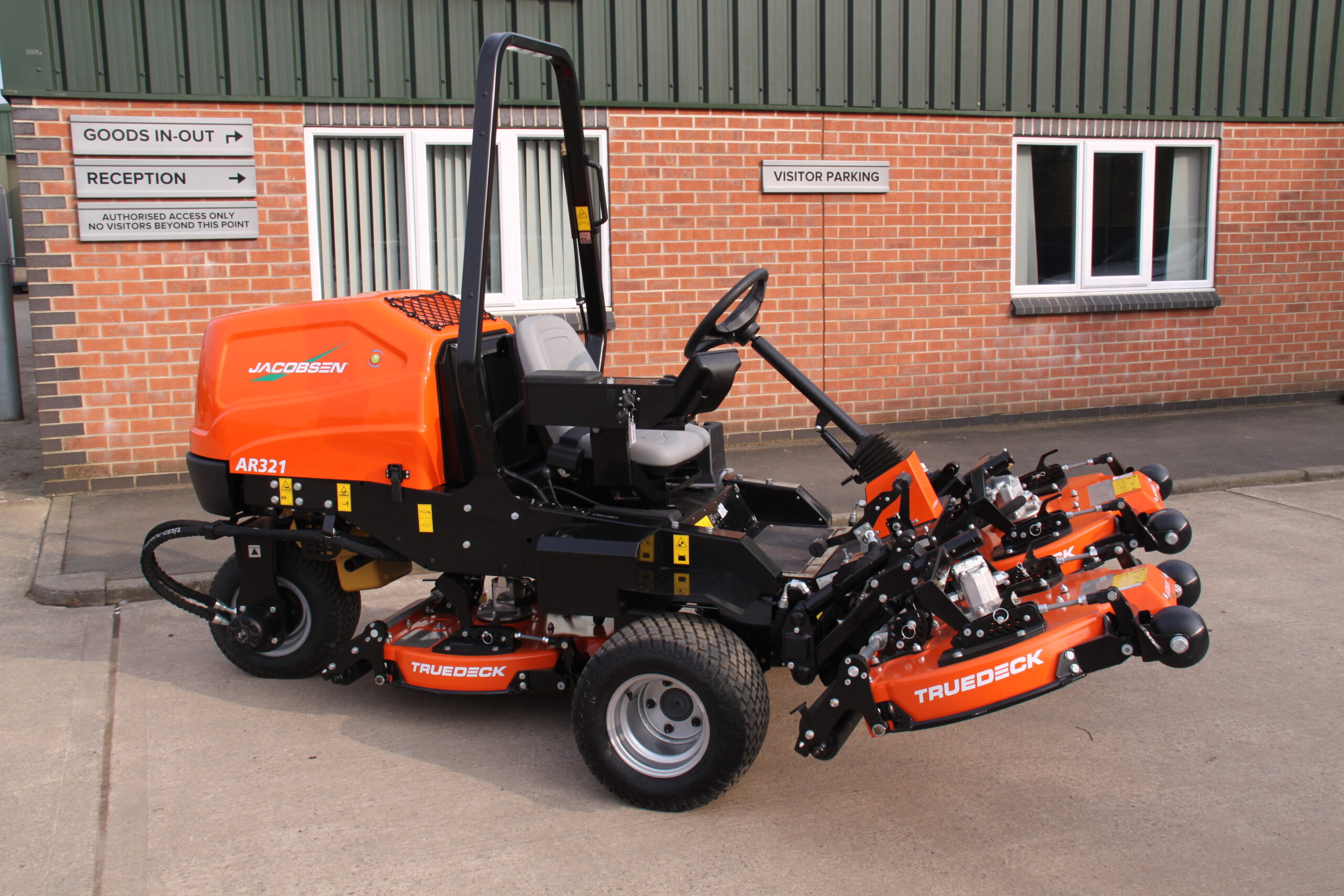

New Jacobsen AR321 3-Gang Rotary Mower

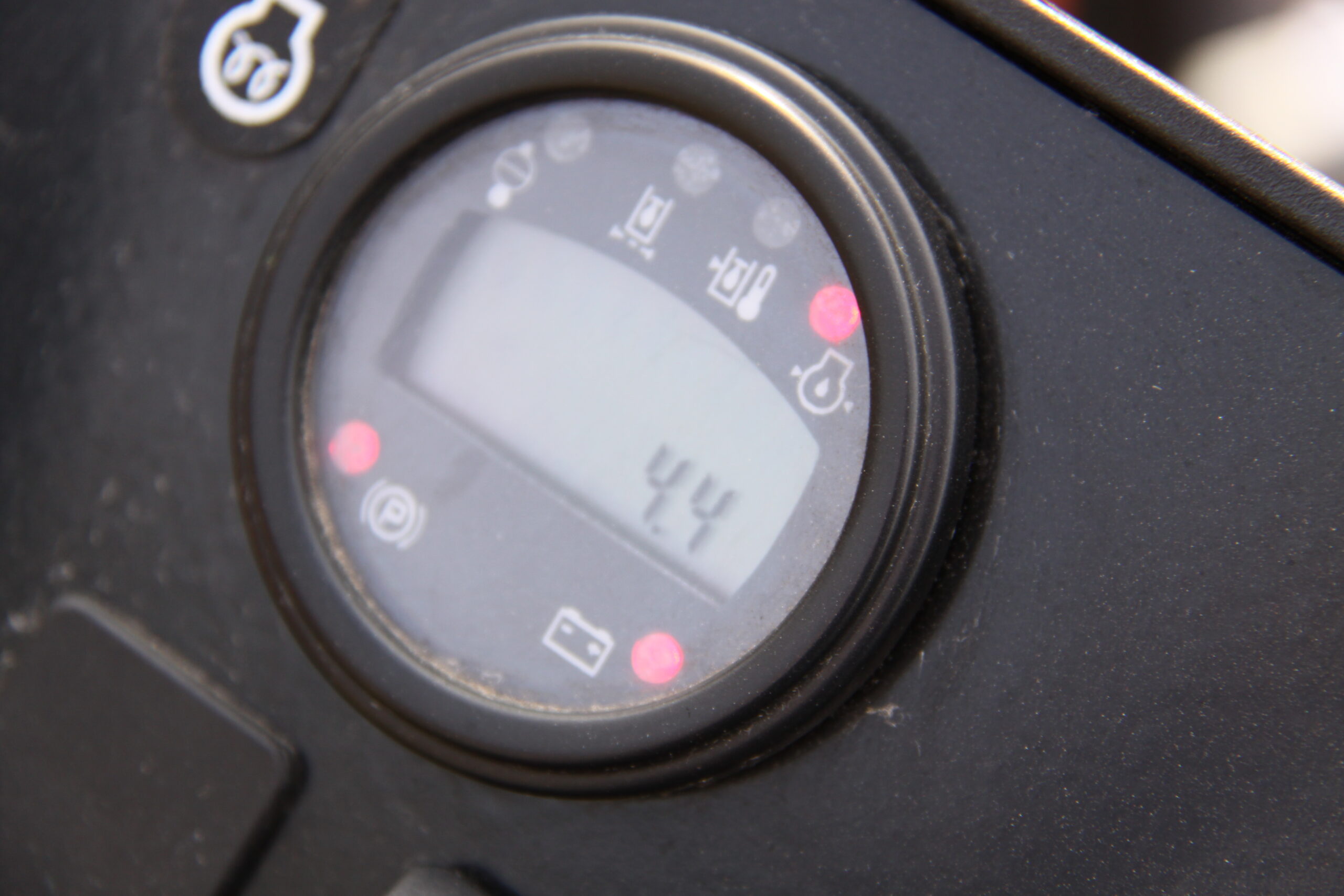

This Jacobsen 3-gang rotary mower was manufactured in 2024 and is brand new with 4 hours on the clock.

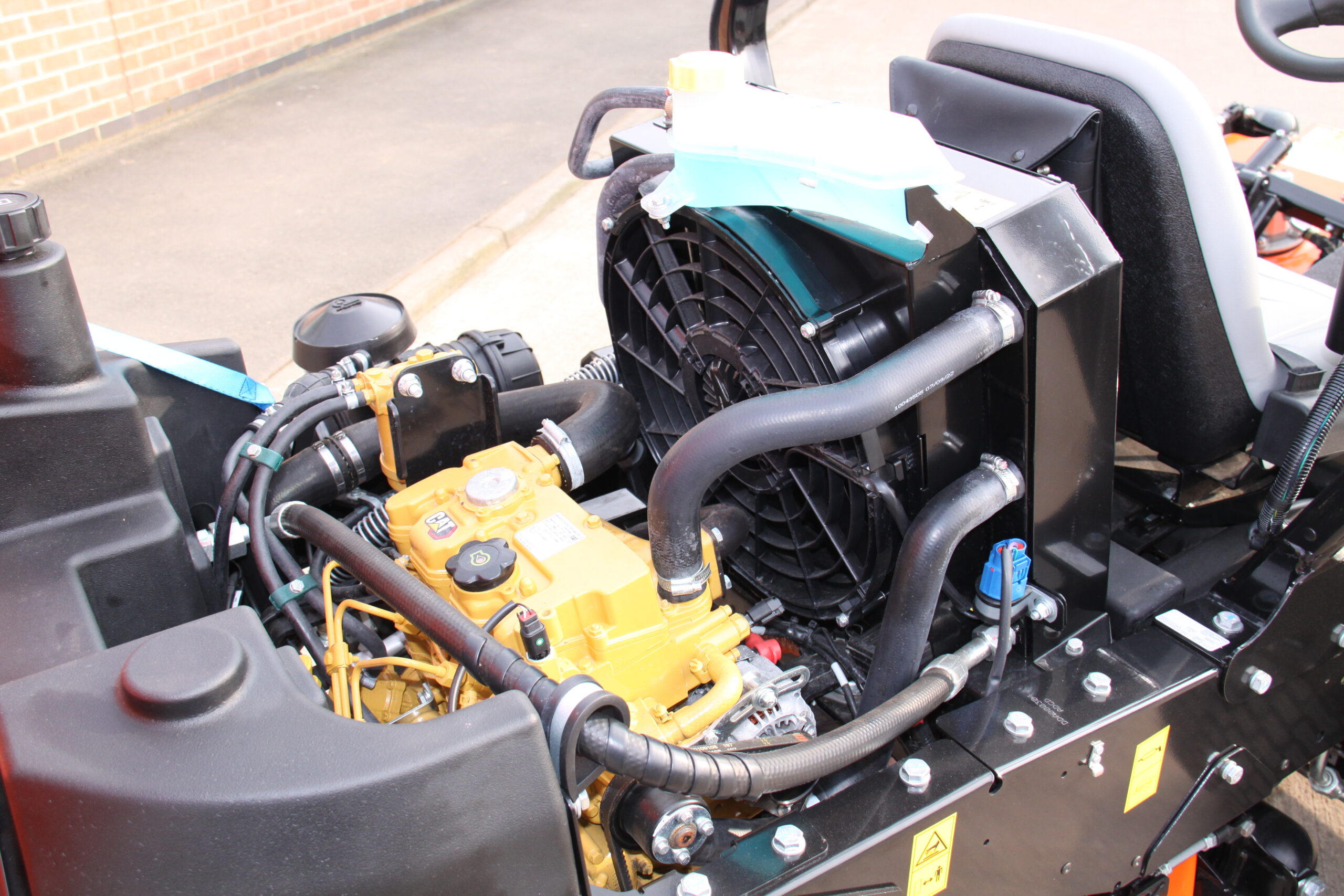

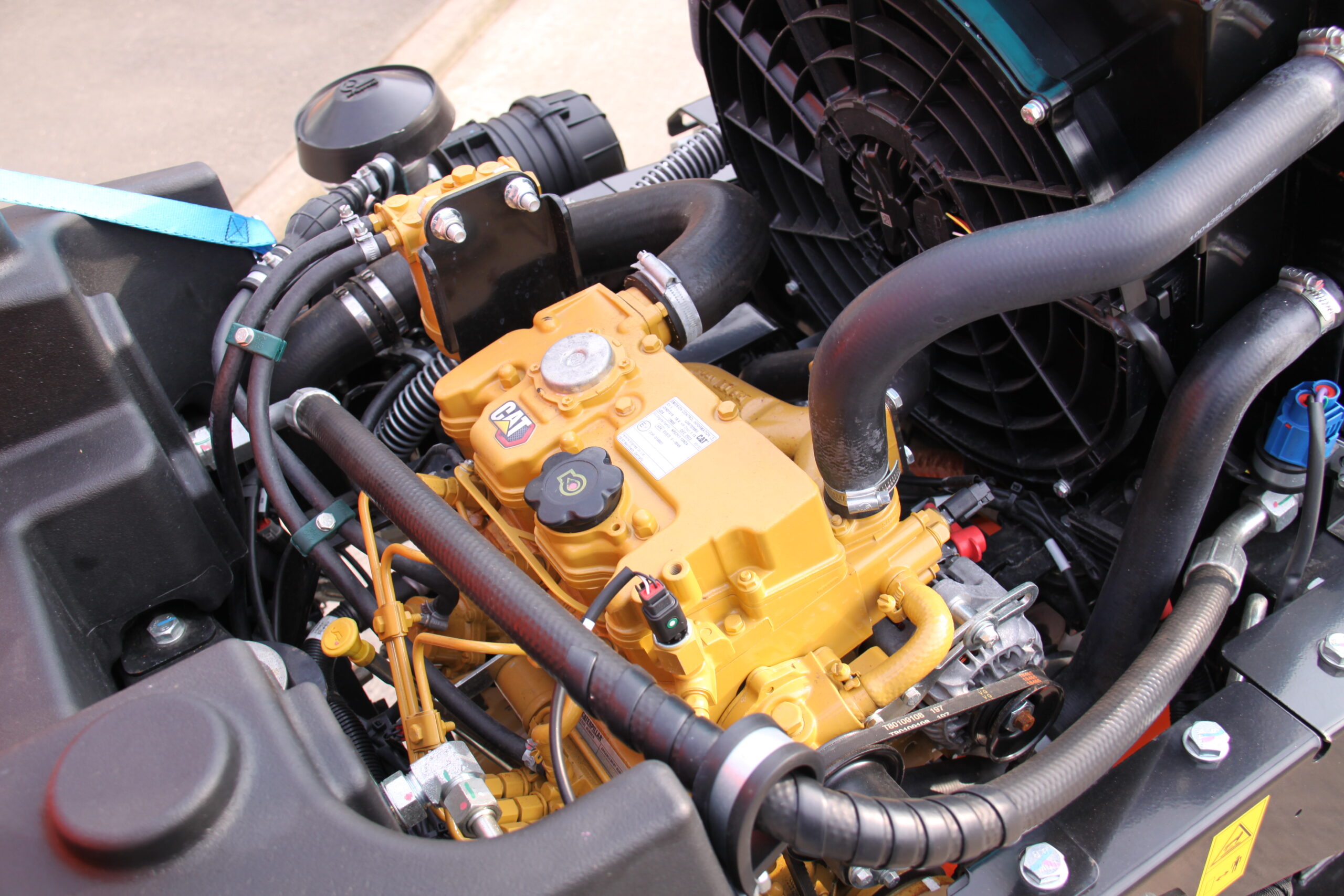

This machine has an 1828mm cutting width, with a cutting height of between 19mm - 88mm. It is powered by a diesel CAT engine delivering 24.8HP. C/w a ROPS.

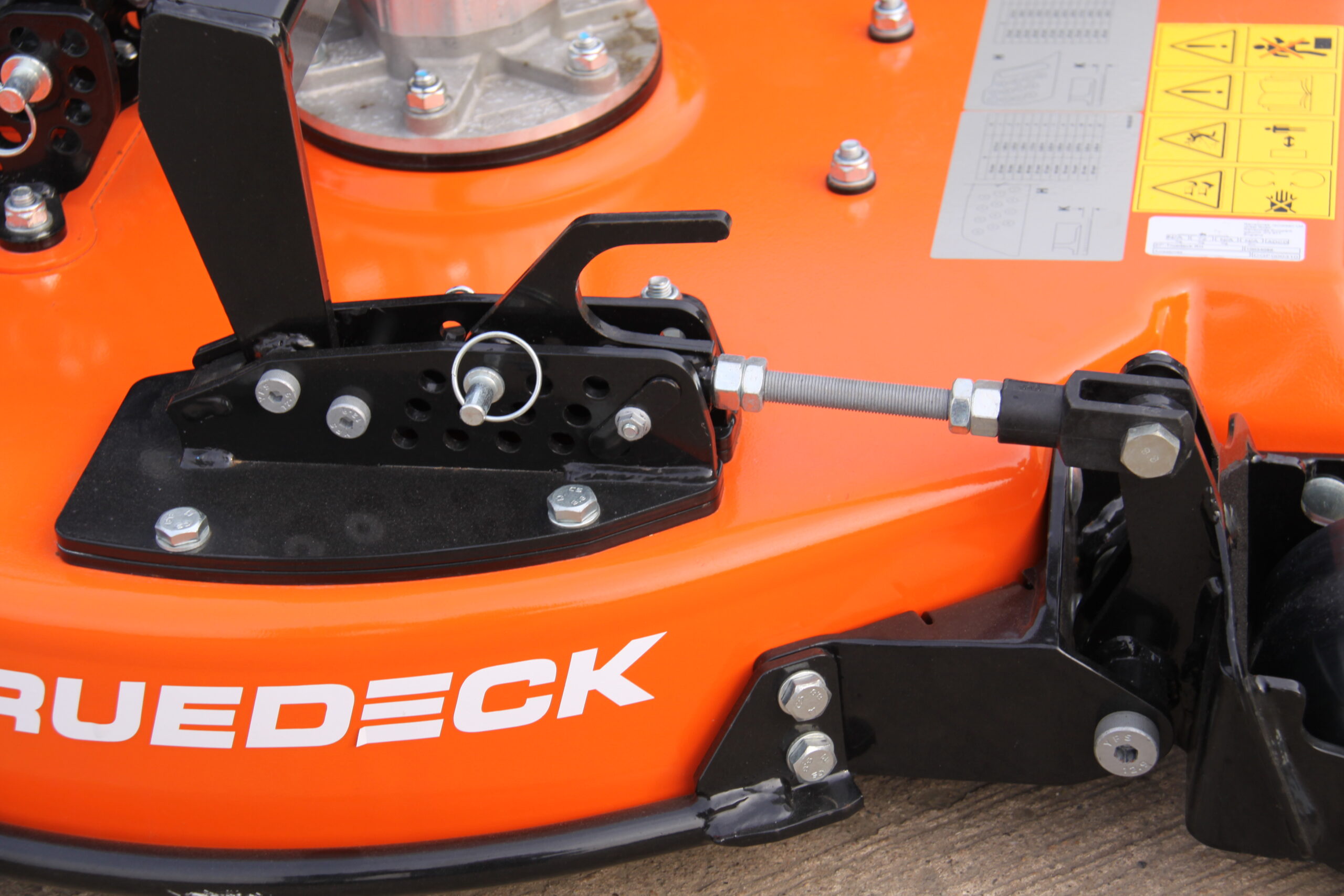

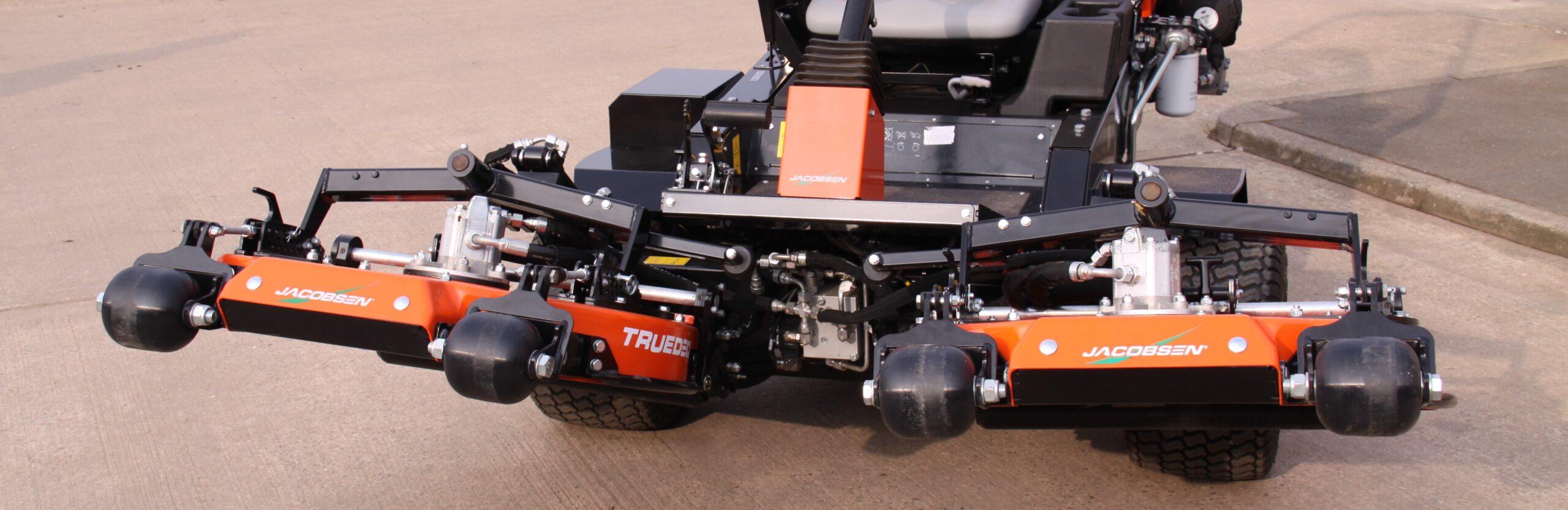

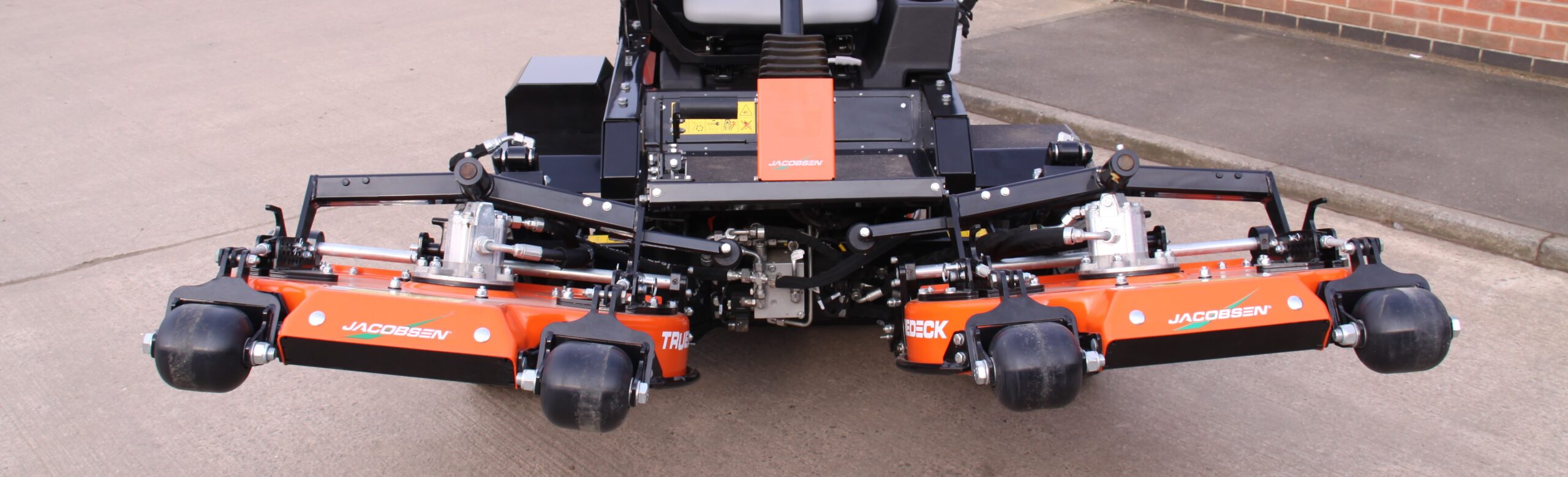

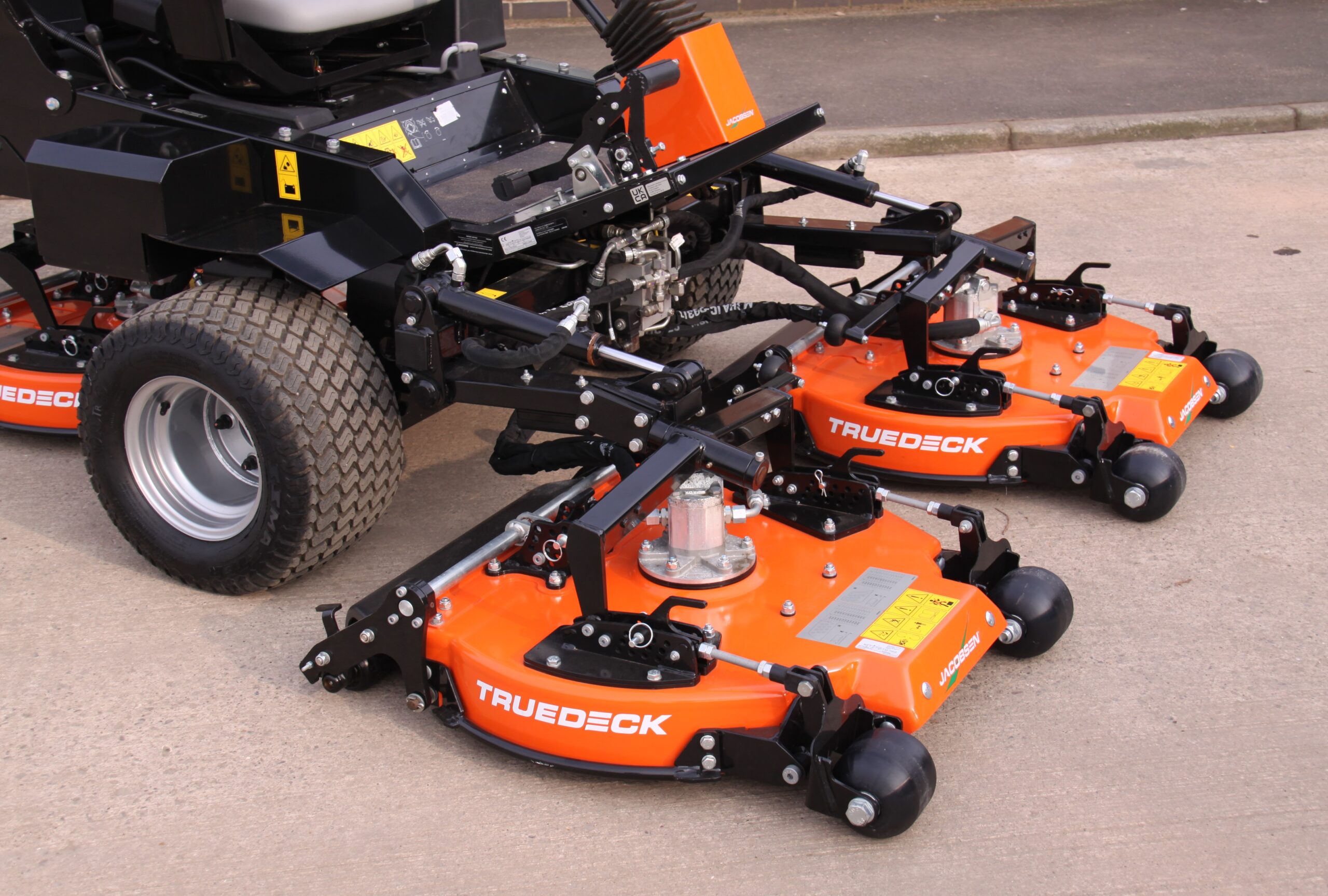

The machine has three 686mm TrueDeck™ rotary cutting decks, which allow the machine to operate over contours and climb inclines with ease. With an overall length of 3100mm, a height of 2060mm and a transport width of 1960mm and can cut 4.5 acres per hour at 6mph.

The AR321 provides a pristine after-cut finish to any course. Equipped with advanced contour following technology allows the cutting units of this machine to independently float and follow the undulations of the terrain.

User-friendly adjustments and maintenance-free wet parking brakes make it longer lasting, with less time spent in maintenance.

Decks & Cutting Units

• Number And Size - 321 3 x 27” (68.58 cm) TrueDeck rotary cutting units
• Cutting Width - 62” (1.6m)
• Blade Material - Hardened, high manganese carbon steel
• Cutting Unit Lift - New long life linear actuator
• Cutting Frequency - New long life linear actuator 0.036” - 0.250” (0.91 mm - 6.35 mm) with 15 blade reel, electronically adjustable

Traction, Brakes & Speed

• Traction Drive - Parallel-series “on demand” 3WD
• Deck Drive - Fixed displacement hydraulic
• Hydraulic System - 8.7 gal. (33L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil
• Service Brakes - Dynamic braking through hydrostatic drive
• Parking Brakes - Dynamic braking through hydrostatic drive Service-free electronic wet disc
• Steering - Hydraulic power steering with tilt wheel
• Mowing Speed - 6.2mph (10km/h)
• Transport Speed - 3.7mph (6km/h)

Weights & Dimensions

• Weight (Excluding Fuel) - 1986lb (901kg)
• Length - 122” (3.10m)
• Overall Height (Including Rops) - 82” (2.06m)
• Wheelbase - 61” (1.54m)
• Transport/Working Width - 77” (1.96m)
